Fluorine Speeds Up Two-Dimensional Materials Growth

By spatially confining fluorine, scientists could activate feeding gases
while disabling its harmful effects

Back in 2004, the physics community was just beginning to recognize the existence of truly two-dimensional (2D) material, graphene. Fast forward to 2019, scientists explore a breadth of different 2D materials, expecting to uncover more of their fundamental properties. The frenzy behind these new 2D materials lies in their fascinating properties: materials thinned down to only a few atoms work very differently from their 3D version. Electrons packed into the thinnest-ever layer show distinctive characteristics apart from being in a “loose net”. Also being flexible, 2D materials could feature distinctive electrical properties, opening up new applications for next-generation technologies, such as bendable and wearable devices.

Then, what is the catch? Many parameters such as temperature, pressure, precursor type, and flow rate need to be factored into the CVD synthesis of 2D materials. With multiple reactions involved, it is extremely difficult to optimize all these factors during the reactions and find their best combinations. That being said, 2D material synthesis is hardly controllable. Scientists have tried to accelerate the growth of 2D materials by adopting different substrates, feedstocks, or temperature. Still, only a few types of 2D materials can be synthesized into large area high quality films.

Scientists from the Center for Multidimensional Carbon Materials (CMCM), within the Institute for Basic Science (IBS) at the Ulsan National Institute of Science and Technology (UNIST), in cooperation with researchers at Peking University (PKU), and University of Electronic Science and Technology of China (UESTC), demonstrated that fluorine, having the strongest tendency to attract electrons (i.e. electronegativity) in all elements, can speed up the chemical reaction to grow three representative 2D materials; graphene, h-BN, and WS2. Fluorine requires only one electron to attain a high stability. Also, having seven electrons in the outermost orbit of an atom, the distance at which these valence electrons reside is the minimum compared with other elements. This means the valence electrons of fluorine are bound to the atom more strongly than any other atom making fluorine the most active element in the periodic table.

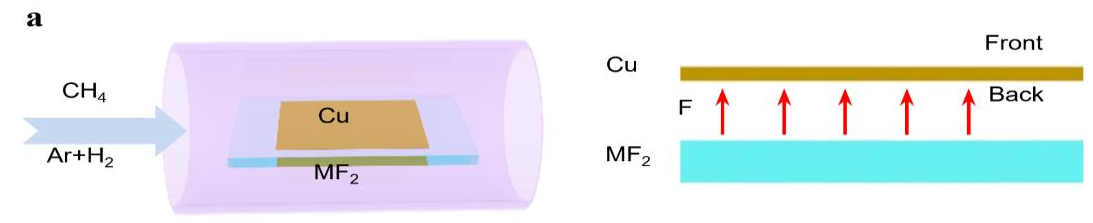

Figure 1. Schematic diagrams of the experimental design for locally introducing fluorine for graphene growth.
▲ Figure 1. Schematic diagrams of the experimental design for locally introducing fluorine for graphene growth.

In fact, active gases such as hydrogen or oxygen are broadly used to tune the growth of graphene and other 2D materials. “Why not then the most active element, fluorine? The highest electronegativity allows fluorine to form bonds with nearly all the atoms in the periodic table, so it is expected to change the reaction routes of many chemical processes,” said Professor Feng Ding, the corresponding author of this study.

Experimentally, it is not preferable to introduce fluorine during a material’s growth as fluorine gets highly toxic in the reactor. To resolve the problem, instead of using fluorine gas directly, the scientists spatially confined the fluorine supply so that only the minimum amount of fluorine is consumed. They placed a metal fluoride substrate (MF2) below a Cu foil with a very narrow gap in between. At a high temperature, fluorine radicals are released from the fluoride surface and spatially trapped in the narrow gap between the Cu foil and the metal fluoride substrate. Surprisingly, such a simple change leads to a record growth rate of graphene at 12 mm per minute. To put this rate in perspective, this new approach reduces the time of growing a 10 cm2 graphene from 10 minutes with previous methods, now down to only 3 minutes.

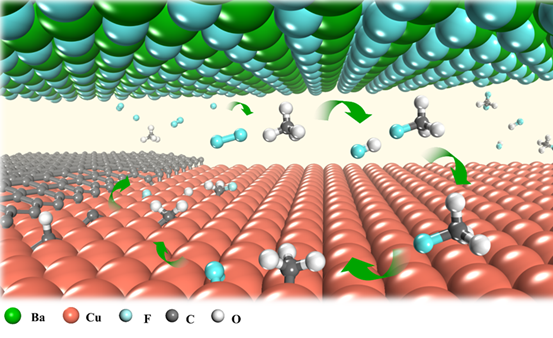

Figure 2. Schematic illustration of local fluorine-modulated graphene growth.
▲ Figure 2. Schematic illustration of local fluorine-modulated graphene growth.

The introduction of local fluorine entirely changes the methane decomposition route. As the fluorine released from the metal fluoride surface easily reacts with methane gas, there will be a sufficient amount of CH3F or CH2F2 molecules in the gap between Cu and BaF2 substrates. These molecules could decompose on a Cu surface much more easily than CH4 does. In other words, they feed the graphene growth better by supplying more active carbon radicals (i.e. CH3, CH2, CH and C).

Further experimental studies showed that the local fluorine supply strategy could greatly accelerate the growth of other 2D materials, such as h-BN and WS2, as well. The scientists investigated how spatially confined fluorine is able to accelerate the growth of 2D materials. Theoretical studies revealed that fluorine, being highly reactive readily interact with methane molecules. The existence of fluorine leads to the formation of CH3F or CH2F2 molecules. These highly active molecules can then be more easily decomposed on the Cu foil surface, which greatly accelerates the carbon supply for fast graphene growth.

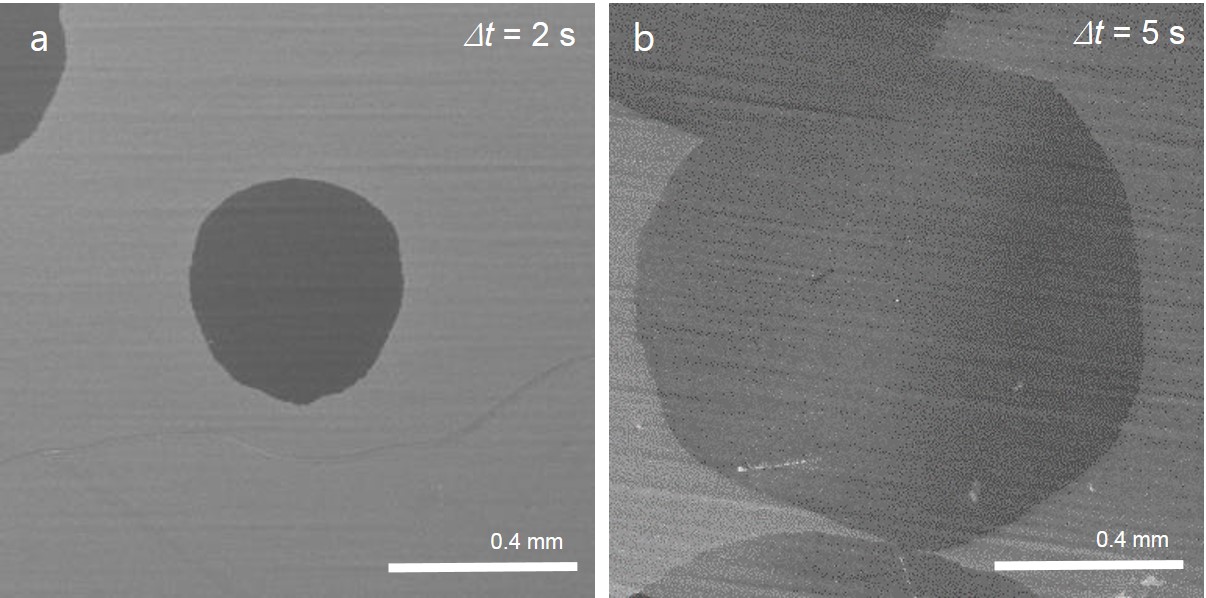

Figure 3. SEM images of graphene domains growing. They showed that 2 seconds was enough for a domain to grow to ~400 μm and that ~1 mm domains were formed after 5 seconds. The statistical growth rate is more than three orders of magnitude faster than typical graphene growth and three times faster than the previous record realized with a continuous oxygen supply.
Figure 3. SEM images of graphene domains growing. They showed that 2 seconds was enough for a domain to grow to ~400 μm and that ~1 mm domains were formed after 5 seconds. The statistical growth rate is more than three orders of magnitude faster than typical graphene growth and three times faster than the previous record realized with a continuous oxygen supply.

Although the detailed mechanism of fluorine boosting the growth of h-BN and WS2 is not clear, the authors are confident that the presence of fluorine could significantly modify the reactions of 2D materials’ growth. “We envision that this local fluorine supply will readily facilitate fast growth of broad 2D materials or enable the growth of new 2D materials which is very difficult to be realized by other methods.” noted Professor Feng Ding. In addition to the fluoride, there are abundant kinds of substrates like sulphides, selenides, chlorides or bromides that might be used as local supply sources of different active materials, which provides wide enough platform to modulate the growth of broad 2D materials.
